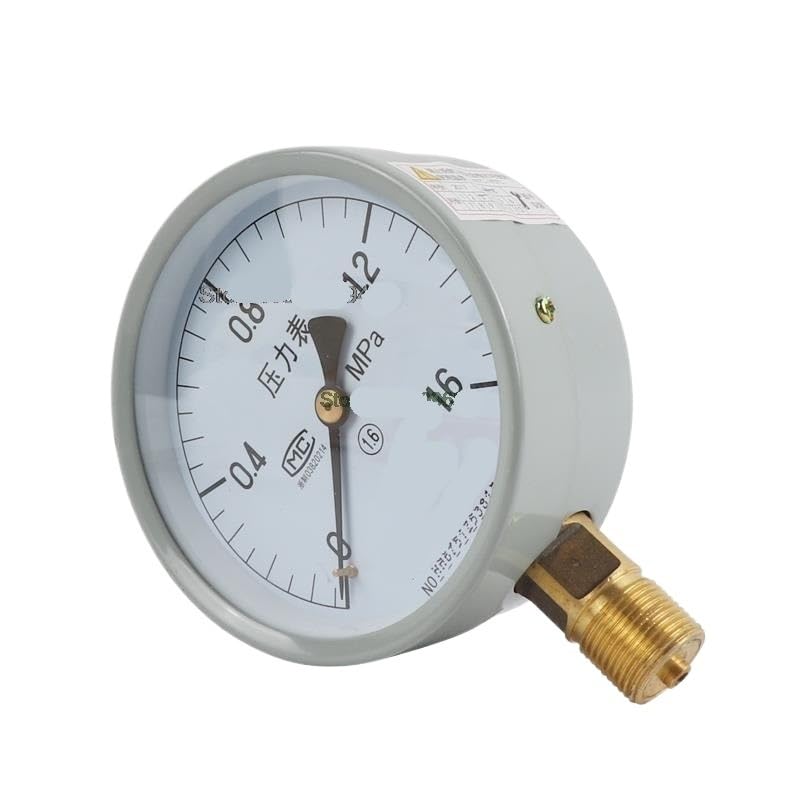

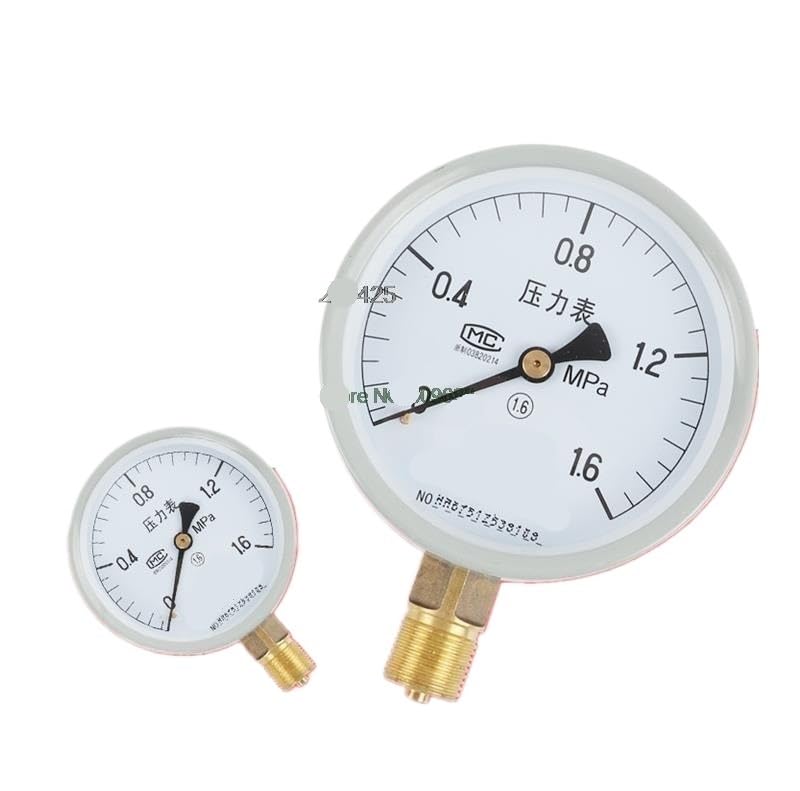

Y-60 Y-100 YN-150 General Pressure Gauges Vacuum Pressure Switch Pressure Gauge(Dia 60mm,0-6Mpa)

Compression GaugesApplication General pressure gauge is used for measuring no explosion danger, crystallize, solidify to copper and its alloy corrosion function of the liquid, gas and steam, and other media pressure. main technical parameters (1) ambient condition operating:The normal work environment temperature meter-40 C ~ + 70 C,relative humidity is not more than 85%. (2) Instrument technology parameters: Name Model Nominal Diameter(mm) Accuracy Grade measuring range(Mpa) Connection thread General pressure gauge (include radial take side pressure gauge, axial and axial take side pressure gauge) Y-40 40 4 0~0.1~10 M10×1 Y-40Z 40 4 0~0.1~10 M10×1 Y-50 50 2.5 0~0.1~25 M14×1.5 Y-50Z 50 2.5 0~0.1~25 M14×1.5 Y-60 60 2.5 0~0.1~60 -0.1~0~2.4 M14×1.5 Y-60T 60 2.5 Y-60Z 60 2.5 Y-60ZT 60 2.5 Y-100 100 1.6 0~0.1~100 -0.1~0~2.4 M20×1.5 Y-100T 100 1.6 Y-100Z 100 1.6 Y-100ZT 100 1.6 Y-150 150 1.6 0~0.1~100 -0.1~0~2.4 M20×1.5 Y-150T 150 1.6 Y-150Z 150 1.6 Y-150ZT 150 1.6 Y-200 200 1.6 0~0.1~100 M20×1.5 Y-250 250 1.6 0~0.1~100 M20×1.5
