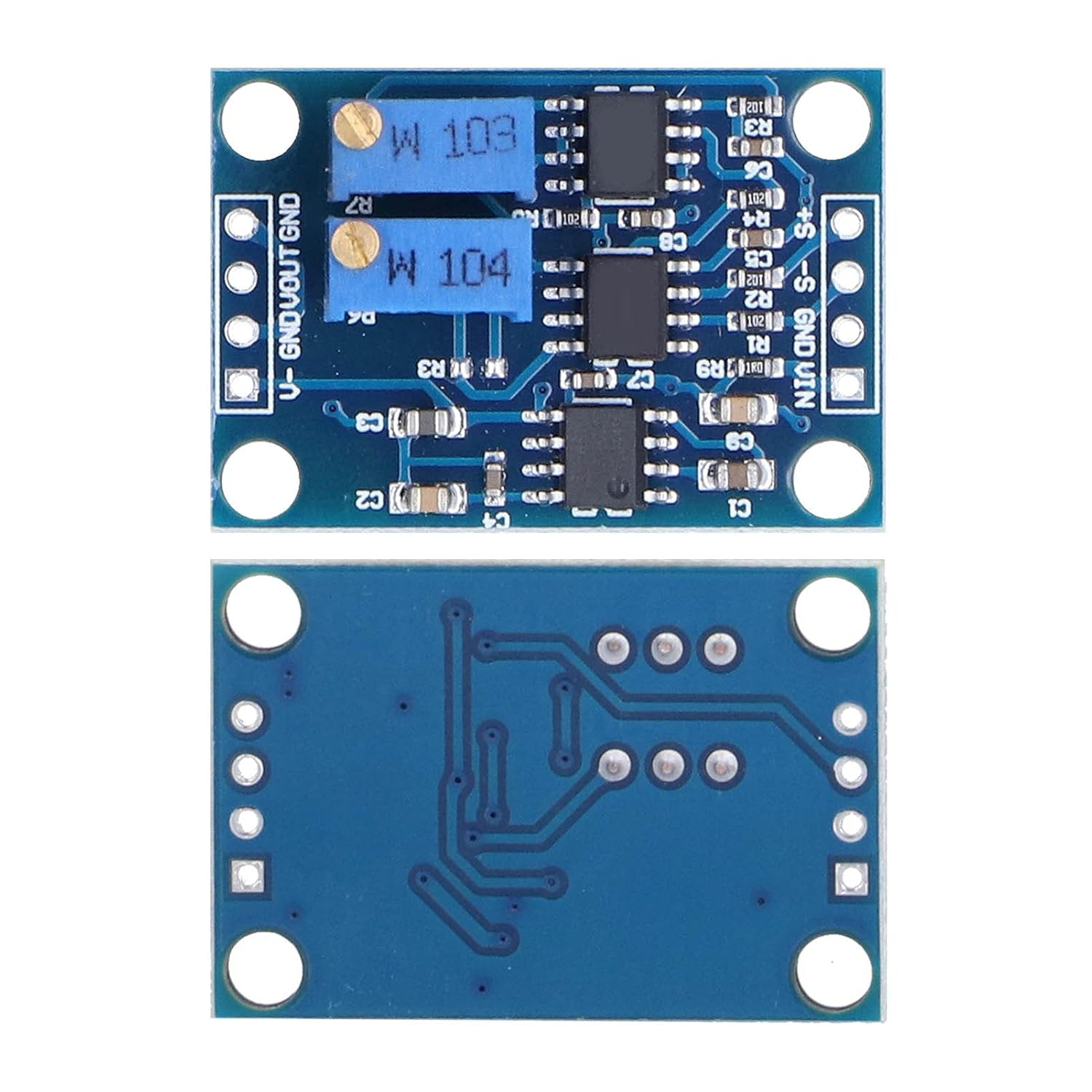

Lyrlody Módulo de Amplificador de Tensão, Ajuste de Ponto Nulo, Alta Ampliação, Design Compacto, Saída de Pressão Negativa, DC 3-12V

Specification: Item Type: Millivolt Voltage Amplifier Input voltage: 3-12VDC Magnification: 1.5-1000 times adjustable, the null spot can be adjusted same as the bottom Signal Input Voltage: 100UV-300mv Signal output range: ± (VIN-2V) Negative pressure output: greater than -v. Due to the internal resistance output of the negative pressure chip, the actual output is higher than -Vin, the higher the power charge, the higher the negative pressure drop Displacement voltage: 50mv Input Bias Current: 1.0na (Max) Common Mode Rejection Ratio: 100dB Displacement Voltage Drift: 0.6mv / c (Max) Stable time: maximum simultaneous interpretation set of 2mv / month Size: approx. 32 x 22mm / 1.3 x 0.9in Package List: 1 x Millivolt Voltage Amplifier Note: Using the module requires some basic electronics. If there is no basic customer, please buy with caution. Our store provides technical support. 1 x Millivolt Voltage Amplifier The use of the module requires some basic electronics. If there is no basic customer, please buy with caution. Our store provides technical support.

• [Highly accurate null point adjustment] improve accuracy by adjusting the null point without drift phenomena, meeting customer requirements effectively.
• [Easy Signal Magnification] Adjust the signal magnification up to 1000 times with a potentiometer to get accurate test results effortlessly.
• [Compact Design for Easy Installation] Small size with positioning holes for convenient installation, providing a maximum voltage output range of ±10V.
• [Efficient negative pressure output] equipped with a negative pressure module using 7660A chip, triggering dual power loads efficiently.
• [Enhanced Input Range for Higher Accuracy] Utilizing the AD620 for microvolt and millivolt amplification, offering higher accuracy and linearity than market alternatives.
