HTAN-1/8-50 DCYCBTH 5PC 1/8 "NPT x 10/30/50mm 304 Stainless Steel Cooling Nozzle, Universal Coolant Nozzle, Suitable For Various Machine Tools, Spray Water(pipe length 50mm) (HTAN-1/8-50I)

Product Description HTAN-1/8-50 DCYCBTH 5 Pcs 1/8" NPT x 10/30/50mm Screw-in Bolt Type 304 Stainless Steel Coolant Nozzle for Lathe, Milling, CNC Machine, etc. High-pressure Heavy Duty Coolant Nozzle: the nozzle made of 304 stainless steel, which can bear stronger water pressure and stand stablely for precision cooling. More Flexible: horizontal 360 degree rotating adjustable and vertical ± 34 degree movement adjustable, fit most for Lathe, Milling , CNC Machine, stone curving machine and jewelry engraving machines that need water or oil cooling. Multi-size Optional: screw joint type ( PT/ NPT), screw joint size (1/8, 1/4, 3/8, 1/2), pipe length (10/30/50 mm) are choosable to meet more different machine needs, you can choose the exact size nozzle for your machine. Package Includes: coolant nozzle x 5 pcs. Specification: thread-1/8" NPT, pipe length-50mm, ID- 4mm, OD- 6mm, vertical movement- 34 degree, horizontal rotating:- 360 degree.

• 1. High pressure cutting fluid inclined cooling nozzle: The nozzle is made of 304 stainless steel, which can withstand stronger water pressure, precise and stable positioning, and will not rebound. Adequate cooling of the tool can extend its service life.
• 2. Tilting nozzle is more flexible: it can rotate horizontally 360 degrees and move vertically ± 34 degrees. Even at the maximum cutting angle, the flow rate will not decrease, making it suitable for lathes, milling machines, CNC machine tools, stone bending machines, jewelry carving machines, and cleaning of processed workpieces that require water cooling or air blowing.
• 3. Multiple sizes are available: NPT thread, thread joint size (1/8 ", 1/4", 3/8 ", 1/2"), pipe length (10/30/50mm, etc.) can be selected to meet more different machine needs. You can choose the precise nozzle size for your machine, and the thread of the extension pipe is M6 * 1.0. If you need other lengths of extension pipes, please choose from our store.

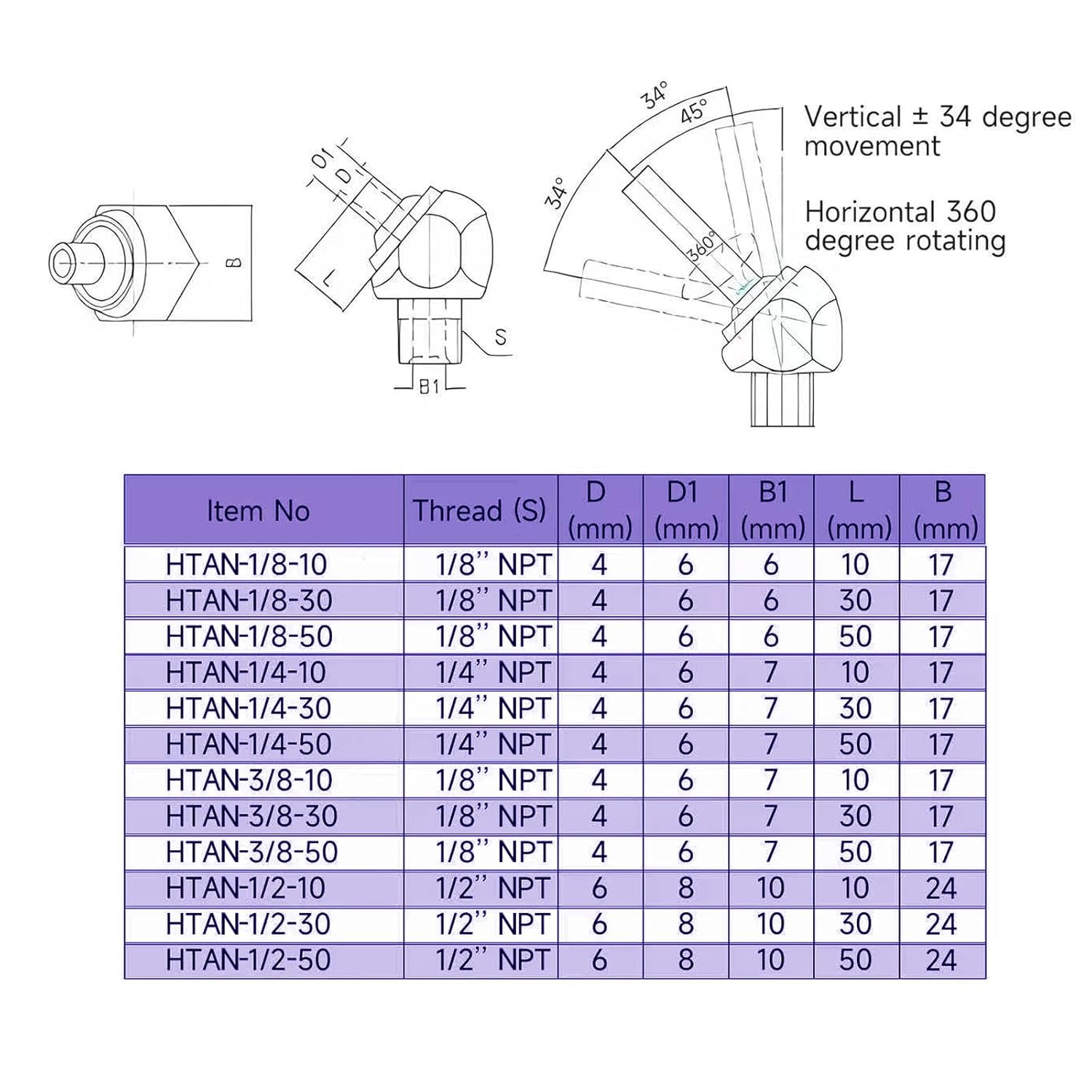

• 4. Specification: 1/8 "NPT thread, pipe length -50mm, inner diameter -4mm, outer diameter -6mm, vertical movement -34 degrees, horizontal rotation -360 degrees. Please note: This set is NPT thread, please ensure that your device is suitable for this specification. If you need PT thread or other threads, please choose the thread product you need in our store.
• 5.Package includes: 5 coolant nozzles.
