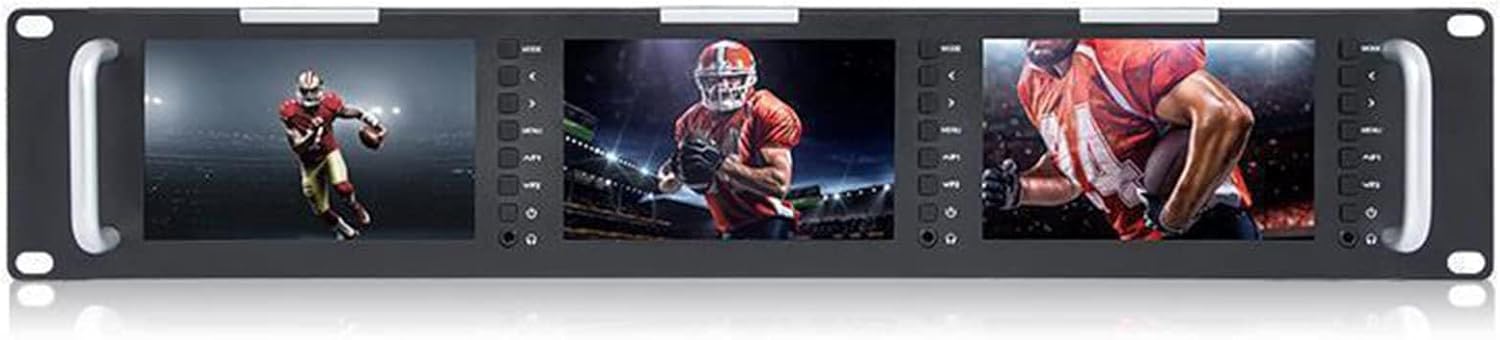

FEELWORLD T51-H Triple 5 inch 2 RU Rack Mount Monitor 800×480 Broadcast LCD Monitor with HDMI AV Input and Output
Product details
| Management number | 215145588 | Release Date | 2026/04/12 | List Price | $191.20 | Model Number | 215145588 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Display Spec.Model: T51-HScreen Size: 5"×3Resolution: 800×480 pixelsDot pitch : 0.045(W)×0.135(H) mmAspect Ratio: 16:9Brightness: 500cd/m²Contrast Ratio: 500:1Backlight: LEDViewing Angle: 70°/70°(L/R) 50°/70°(U/D)Input (Each LCD)1 X BNC: 3G-SDI1 X HDMI1 X BNC: Video2 X RCA: Audio(L/R)Output (Each LCD)1 X BNC: 3G-SDI1 X HDMI1 X BNC: VideoAudio (Each LCD)Audio Out: Stereo Headphone × 1HDMI Support Format480i/576i/480p/576p1080i (60/59.94/50)720p (60/59.94/50/30/29/25/24/23.98)1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)GeneralInput Voltage: DC9～24VPower Consumption: ≤25WPower Connector: DC/ 4-pin XLRWorking Temperature: -20°C~55°CStorage Temperature: -30°C~65°CInstall Way: Rack MountUnit Size: 482.6Lx88Hx34D mmUnit Weight: 1570gAdvanced FeaturesPeaking Focus Assist(Red highlight over parts of the monochrome image in focus)Check Field (Red,Green,Blue,Mono)Pixel to PixelCenter MarkerScreen Marker (80%,85%,90%,93%,96%,2.35:1)Image Flip (H, V, H/V)Image FreezeZoom AllU/D & L/R ZoomCustom Color TemperatureBuilt-in LED tally indicators (Red, Green, Yellow)
- 【Triple 5" 2RU Rack Monitors】Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips.
- 【TFT Panel with LED backlight】The T51-H is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140°/ Vertical: 120°.
- 【Special Features】Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Custom Color Temperature.
- 【3-color Tally Light】There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.
- 【Multiple Inputs and Outputs】Each LCD of T51-H monitor supports: HDMI X 1, CVBS X 1, Auido (L/R) X 2, Output: HDMI X 1, CVBS X 1, Audio: Stereo Headphone.【Standard Accessories】1× 3A Power Adapter, 1× Tally Kit, 1× Operation Manual.
| Brand | FEELWORLD |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Brightness | 500 cd/m² |
| Model Name | T51 |
| Resolution | 800 x 480 pixels |
| Screen Size | 5 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | FEELWORLD |
| Model Number | T51 |
| Adaptive Sync | G-Sync Compatible |
| Mounting Type | Rack Mount |
| Screen Finish | Glossy |
| Viewing Angle | 170 Degrees |
| Contrast Ratio | 500:1 |
| Has Color Screen | Yes |
| Native Resolution | 800 x 480 |
| Display Technology | LCD |
| Additional Features | Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Image Flip, Image Freeze, Zoom, Custom Color Temperature |
| Hardware Connectivity | HDMI |
| Connectivity Technology | HDMI |
| Item Dimensions D x W x H | 1.34"D x 19"W x 3.46"H |
| Display Resolution Maximum | 800x480 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 6 |
| Picture Quality Enhancement Technology | Peaking Focus Assist, Check Field, Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Zoom |
