Akasa Newton RC, Designed for ASUS NUC 14 Pro (Revel Canyon) Core™ i3 and Core™ i5/i7 with vPro, Aluminium Silent Mini Fanless Case, Support 2.5" SATA HDD/SSD and VESA Mounting, A-NUC105-M1B

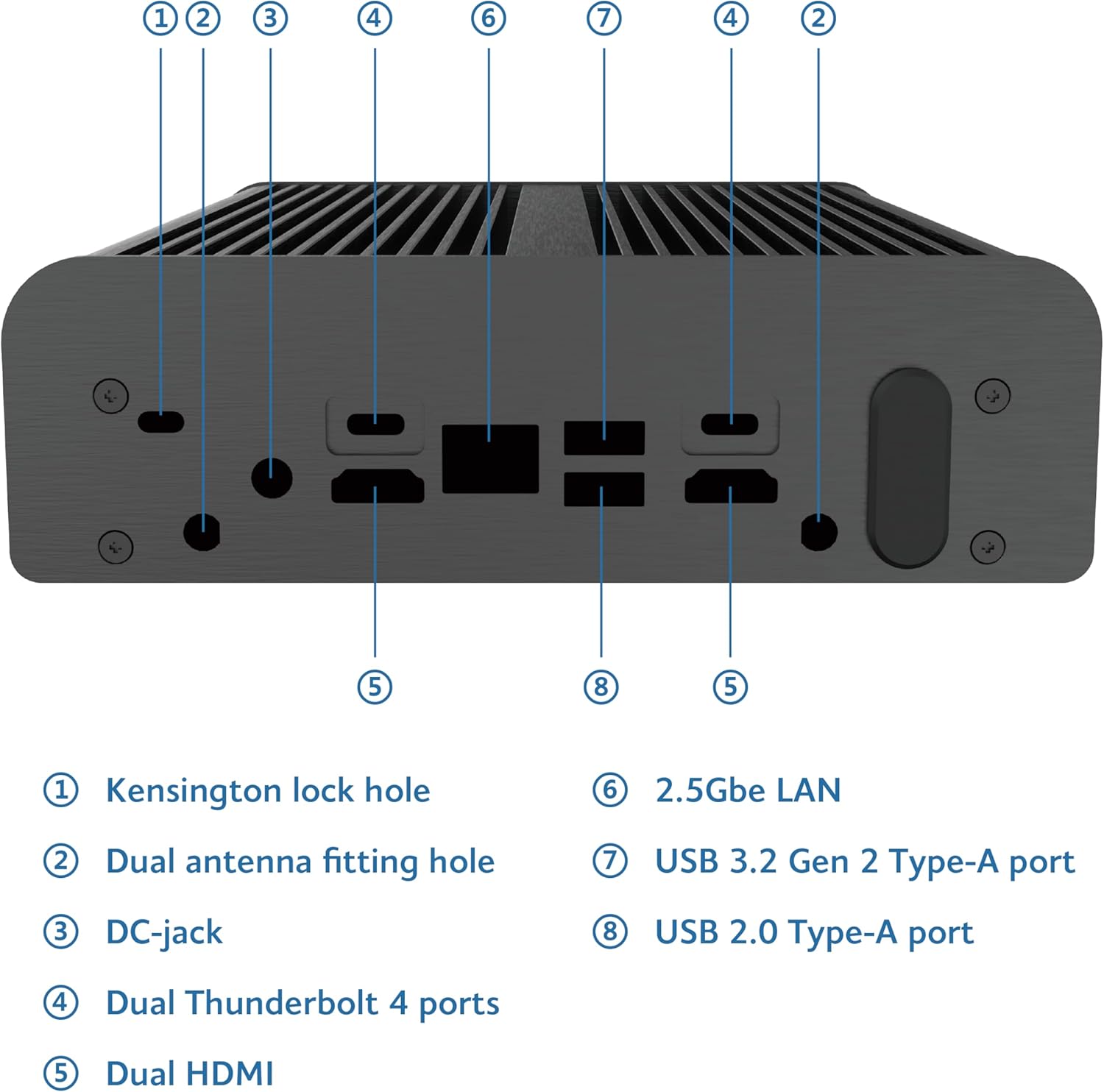

Akasa Newton RC Aluminium Fanless case for ASUS NUC 14 Pro (Revel Canyon). Full interface and VESA mounting support. Accommodates 2.5" SATA HDD/SSD. Specification- Material: Aluminium Motherboard Types: UCFF 4" X 4" Motherboard Support: ASUS NUC 14 Pro (Revel Canyon) Kit/Board/Mini-PC NUC14RVK, NUC14RVH, NUC14RVS, NUC14RVB, NUC14RVKC3, NUC14RVHC3, NUC14RVBC3, NUC14RVKU5, NUC14RVHU5, NUC14RVSU5, NUC14RVBU5, NUC14RVKv5, NUC14RVHv5, NUC14RVSv5, NUC14RVBv5, NUC14RVKU7, NUC14RVHU7, NUC14RVSU7, NUC14RVBU7, NUC14RVKv7, NUC14RVHv7, NUC14RVSv7, NUC14RVBv Dimensions: 176.6 x 200 x 53.6mm (W x D x H) Maximum TDP Support: 28W Drive Bays: 2.5’’ SSD/HDD (up to 9.5mm high) Front I/O: Power button, power and HDD LED, USB 3.2 port x2, USB 2.0 port x2 *The USB 3.2 Gen 2x2 Type-C port on the front of the NUC 14 Pro board will not be functional with the fanless case Rear I/O: DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1, Serial port x1 Serial Port Support: *NUC 14 Pro (Revel Canyon) does not have an internal serial header so this interface opening will not be utilised Antenna Fitting Holes: 2 Security: Kensington lock VESA Mounting: Support Product Code: A-NUC105-M1B

• [Model Matching] - Suitable for ASUS NUC 14 Pro (Revel Canyon) Kit/Board/Mini-PC. Please refer to the chart below for detailed model compatibility.
• [Widely Support] - Experience the entirely noise-free mini PC Chassis with an all-aluminium fanless CPU cooling design.
• [Front Port Non-Functionality] - The front panel offers USB 3.2 x2, USB 2.0 x2. *NOTE: The USB 3.2 Gen 2x2 Type-C port on the NUC 14 Pro won't be functional.
• [Excellent Cooling Performance] - Maximise performance with the M.2 SSD heatsink, which efficiently transfers heat through the aluminium panel.
• [Optional Mounting Kit] - Suitable for Akasa external antenna (Product Code: A-ATN01-BK) and corresponding pigtail (A-ATCO1-220GR).
