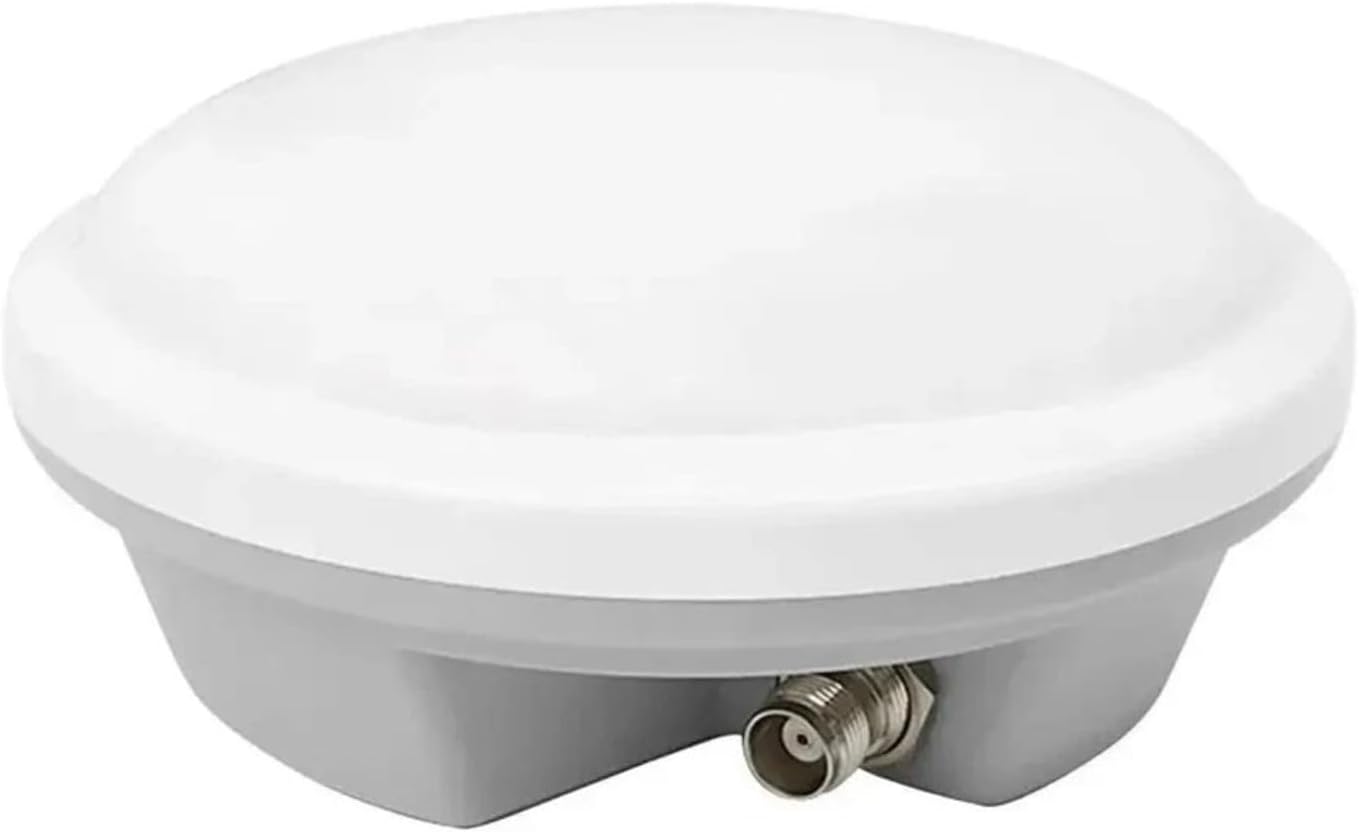

AG-35H GNSS Antenna With Magnet Mount, Full-Frequency GPS L1/L2/L5 BDS B1/B2/B3 Glonass For Galileo Signals, RHCP, For Precision Mapping, Adapter Only(TNC-TNC)

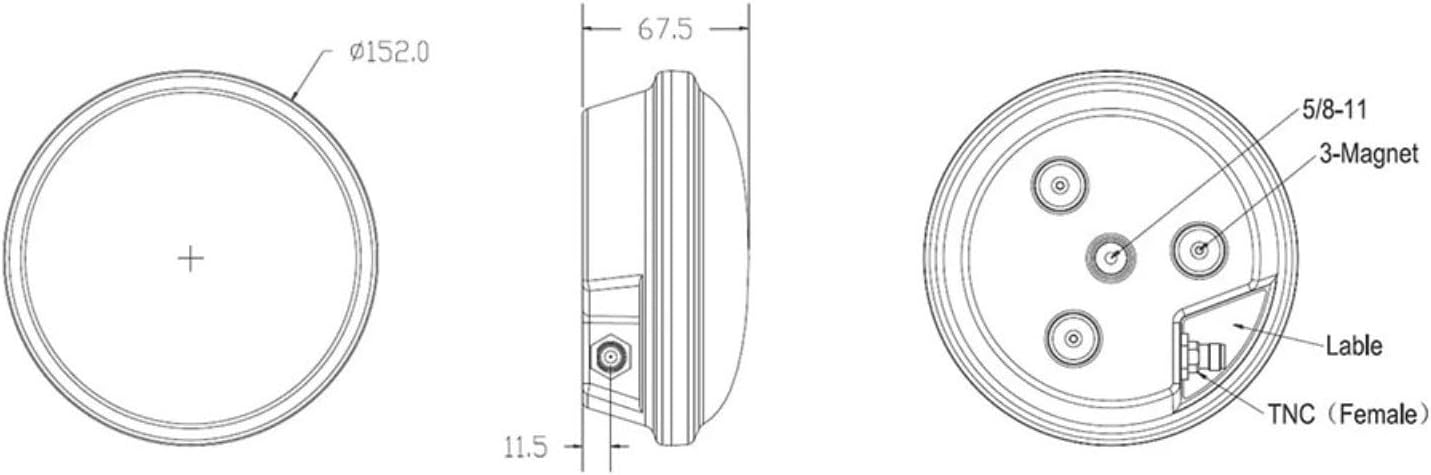

Features:* Manufactured and tested under strict quality control standards.* Stable performance and high reliability.* AG-35H GNSS Antenna Magnet GPS L1 L2 L5 for Galileo Glonass BDs Car Roof for Agricultural Mapping AG35.* Four-star full-frequency GNSS measurement antenna side outlet.Specifications:Part name: Full-frequency measurement antennaConnecting wire (optional): TNC-TNC，TNC-SMAMaterial: ABS, metalColor: whiteSize: 152mm*67.5mmAntenna structure: Four feed points, double-layer superposition structureSupported satellite signals: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L-BandMaximum gain: >5.0dBi@FCPolarization: Right-hand circular polarization (RHCP)Antenna axis ratio @ : <1.5dBHorizontal coverage angle: 360°Characteristic impedance: 50 ohmPhase center error: ≤2.0mmPhase center repeatability: ≤1.0mmWorking frequency: 1164MHZ~1300MHZ;1525MHZ~1621MHZLow noise gain: 40+2.0dB (Typ. @25°C)Installation : 5/8-11 and magnetic suction cupPackage contents:1 x full-frequency measurement antenna1 x connecting cable

• High-Precision GNSS Coverage: Engineered as a GNSS high-precision measurement antenna, supports GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, and for Galileo E1/E5a/E5b/E6 for consistent agricultural mapping and surveying accuracy.
• Full-Frequency Signal Reception: The four-star full-frequency antenna with double-layer superposition structure delivers >5.0dBi gain, right-hand circular polarization, and 360° horizontal coverage for stable signal capture in varied field environments.
• Robust Construction & Compatibility: Built with ABS and metal casing, includes TNC-TNC or TNC-SMA connecting options, fits 5/8-11 mount or magnetic base, making it adaptable for receiver setups on vehicles and field equipment.
• Precision Phase Center Performance: Offers ≤2.0mm phase center error and ≤1.0mm repeatability, low noise gain of 40+2.0dB (Typ @25°C), and 50-ohm impedance for refined positioning results in demanding industrial applications.
• Ready-to-Use Package: Supplied with full-frequency measurement GNSS antenna AG-35H and matching cable, simplifying installation for professionals who require reliable data capture with minimal setup time.
