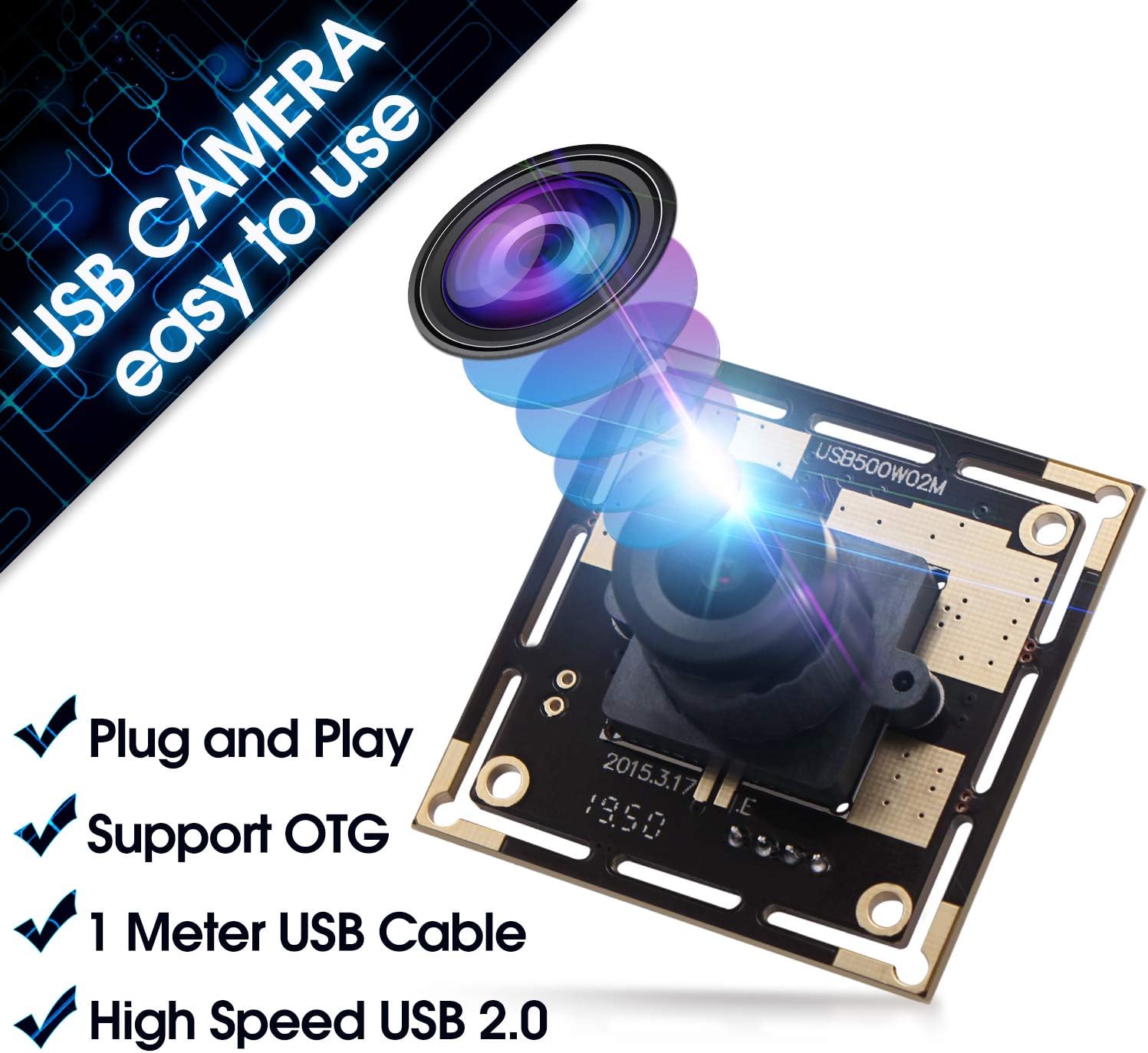

5 Megapixel USB Camera Module HD 2592X1944 Webcamera with CMOS OV5640 Sensor, Machine Vision Mini Webcam for Windows Mac Andriod Linux,Plug&Play,OTG Camera (2.1mm Lens)
Product details
| Management number | 216077178 | Release Date | 2026/04/19 | List Price | $19.20 | Model Number | 216077178 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: 5Megapixel resolution：2592X1944 Sensor 1/4" CMOS OV5640 Size：38X38mm, 32x32mm 5.0megapixel, Max. 2592(H)x1944(V)pixels Picture format MJPEG or YUY2 optional/USB Protocal USB2.0 HS/FS Auto exposure AEC Support/Auto white blance AEB Support Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB Signal Output: Serial data for USB standard compliant 2.0 Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70) Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above" Effective Pixels: 2592 (H) x 1944 (V) pixels/2048 (H) x 1536 (V) pixels/1600 (H) x 1200 (V) pixels/1920 (H) x 1080 (V) pixels 1280 (H) x 1024(V) pixels/1280 (H) x 720 (V) pixels/1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels Performance: 2592x1944 MJPEG 15fps YUY2 3fps 2048x 1536 MJPEG 15ps YUY2 3fps 1600x 1200 MJPEG 15fps YUY2 3fps 1920x 1080pixels MJPEG 15fps YUY2 3fps 1280x 1024MJPEG 15fps YUY2 7.5fps 1280x 720 MJPEG 30fps YUY2 7.5fps 1024x 768 MJPEG 30fps YUY2 15fps 800x 600 MJPEG 30fps YUY2 30fps 640x 480 MJPEG 30fps YUY2 30fps
- HD 5MP 2592X1944 USB Camera - 5MP Webcam with specialized optical lens. High precision and more clear pictures! Automatic white balance and automatic exposure. Webcam captures your clips in true 1944P, and 15 frames per second,high pixel technology for sharp image and accurate color reproduction. Good to use for high leval products image intergation or housekeeping.
- High Quality Image CMOS Sensor - 5 megapixel webcamera use 1/4" CMOS OV5640 image sensor which is the high standard in terms of image quality and sensitivity performance. Low color reproduction deviation,the CMOS image sensor helps to produce sharp images effectively. Max. Resolution :2592(H) X 1944(V):High Definition 1280x720@30fps/2592x1944@ 15fps.
- Quick Plug&Play - This usb camera module is easy to use, only plug camera into computer USB port and running the software can make video display and recording work. No drive installation is required. Support USB 2.0 OTG, high speed usb 2.0 data transmission,occupy less bandwidth,greatly improved the working efficiency. Default 1 meter long cable.

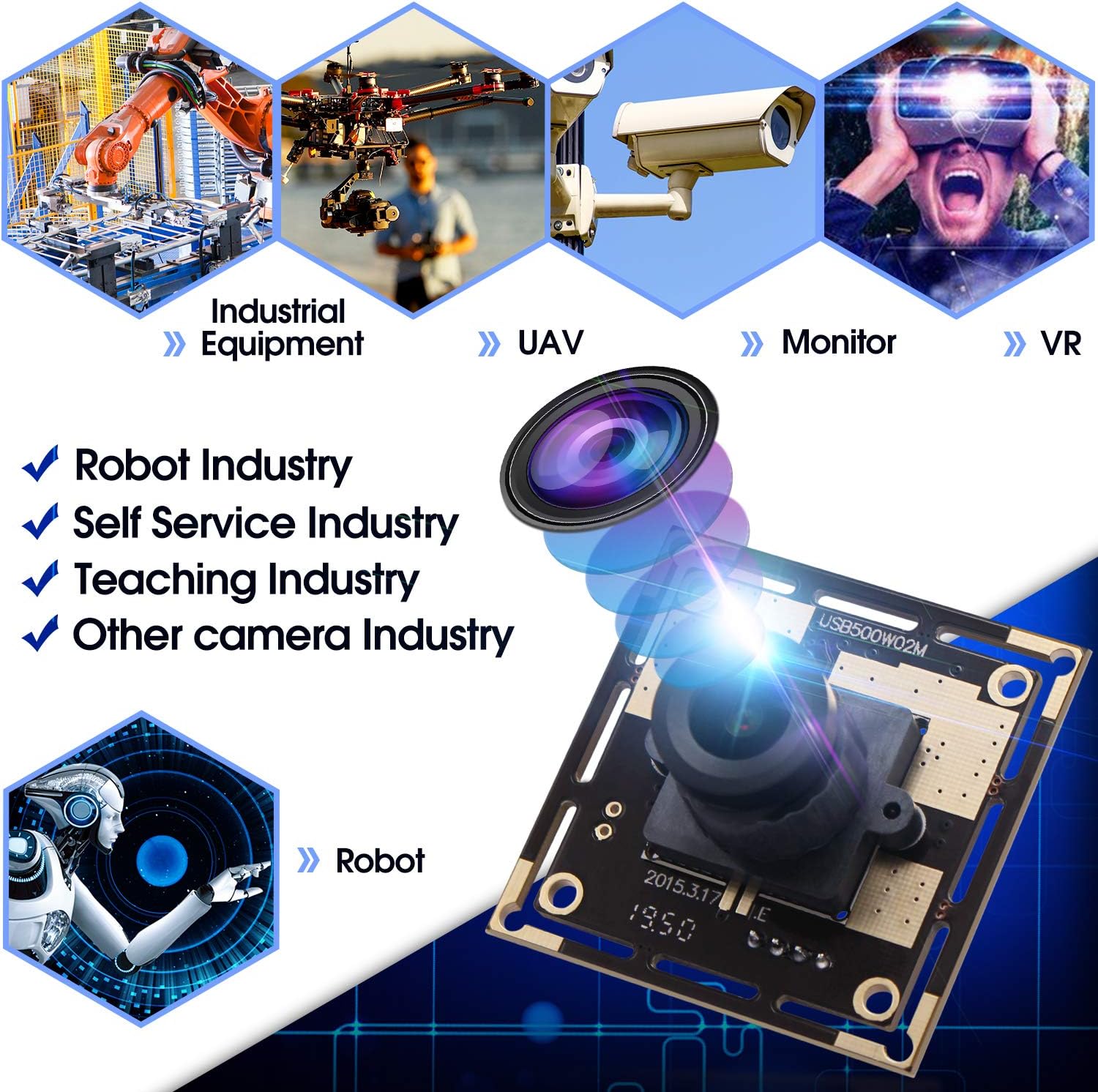

- Wide Application - 5MP minicam with super small outline and thin profile for embedded applications,Compact camera for all kinds of machine vision,Wide application for robot,VR camera,electronic microscope,medical machine,ATM machine, kiosk,security systems, portable video system, video phones, industrial machine monitoring and toys etc.
- Best Universal Compatibility - 5 megapixel webcam usb camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services, widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
| UPC | 767311100170 |
|---|---|
| Zoom | Digital |
| Brand | Camera USB |
| Features | Low Light |
| Lens Type | Zoom |
| Focus Type | Fixed Focus |
| Model Name | USB500W02M |
| Style Name | Minimalist |
| File Format | JPEG |
| Form Factor | Compact |
| Screen Size | 4 Inches |
| Sensor Type | CMOS |
| Manufacturer | Camera USB |
| Model Number | Camera USB-USB500W02M |
| BuiltIn Media | USB Cable, User Manual |
| Camcorder Type | Webcam |
| Shooting Modes | Automatic, Night |
| Antenna Location | Professional and specialized uses |
| Maximum Aperture | 2.8 f |
| Operating System | Windows, Linux, MacOS, Android |
| Video Resolution | 1080p |
| Flash Memory Type | Memory Stick |
| Photo Sensor Size | 1/4-inch |
| Compatible Devices | Laptop, Personal Computer, Smartphone, Tablet |
| Image Aspect Ratio | 4:3 |
| Image stabilization | Optical |
| Maximum Focal Length | 32 Millimeters |
| Video Capture Format | MJPEG |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Image Format | JPEG |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Display Resolution Maximum | 4K UHD |
| Effective Still Resolution | 5 MP |
| Flash Memory Video Speed Class | V10 |
| Flash Memory Bus Interface Type | USB |
